OBD Diagnostics
CAT Y to DB15 Male Cable
CAT Y to DB15 Male Cable
Regular price
$61.00 USD
Regular price
Sale price
$61.00 USD
Unit price
/
per
Couldn't load pickup availability

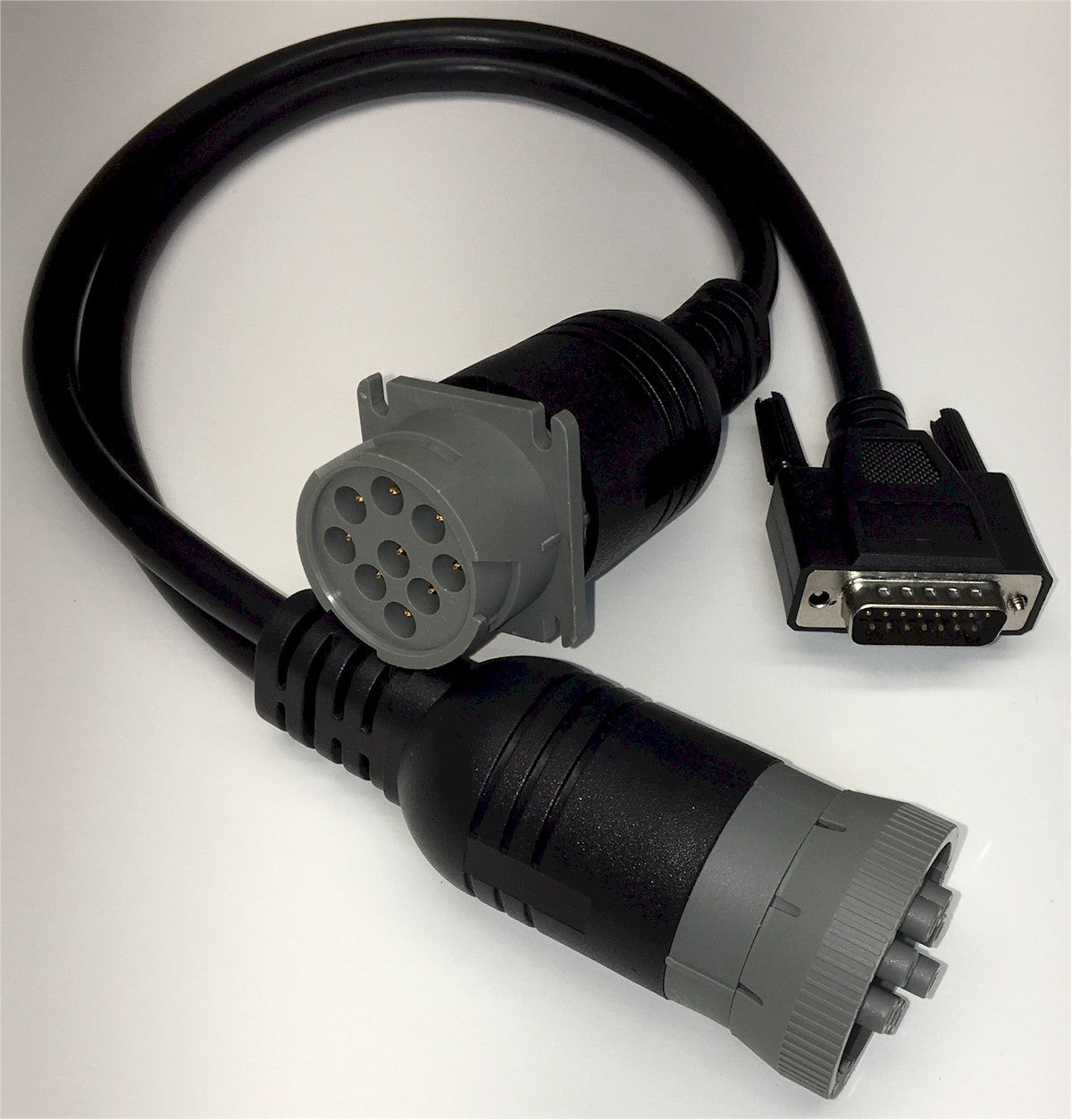

Y cable for CAT systems. This cable includes one Female (sockets) connector to plug into your vehicle connected to a Male (pins) bulkhead connector and a Male 15-pin D Connector.
Wiring Connections
| Signal | CAT F | CAT M | DB15 M |
| Power | A | A | 8 |
| Battery | B | B | 6 |
| - | C | C | - |
| - | D | D | - |
| - | E | E | - |
| J1939 L | F | F | 12 |
| J1939 H | G | G | 13 |
| J1708 L | H | H | 14 |
| J1708 H | J | J | 15 |
