MEFI J1 Connector Kit

MEFI 1 through 4B ECMs have two high density 32 pin connectors, J1 and J2. The keying on the two connectors are different, preventing the connectors from being plugged in to the incorrect connector. The alignment keys are a plastic piece on the nose of the connector, the J1 connector (this one) is a smoky color, the J2 connector is clear.

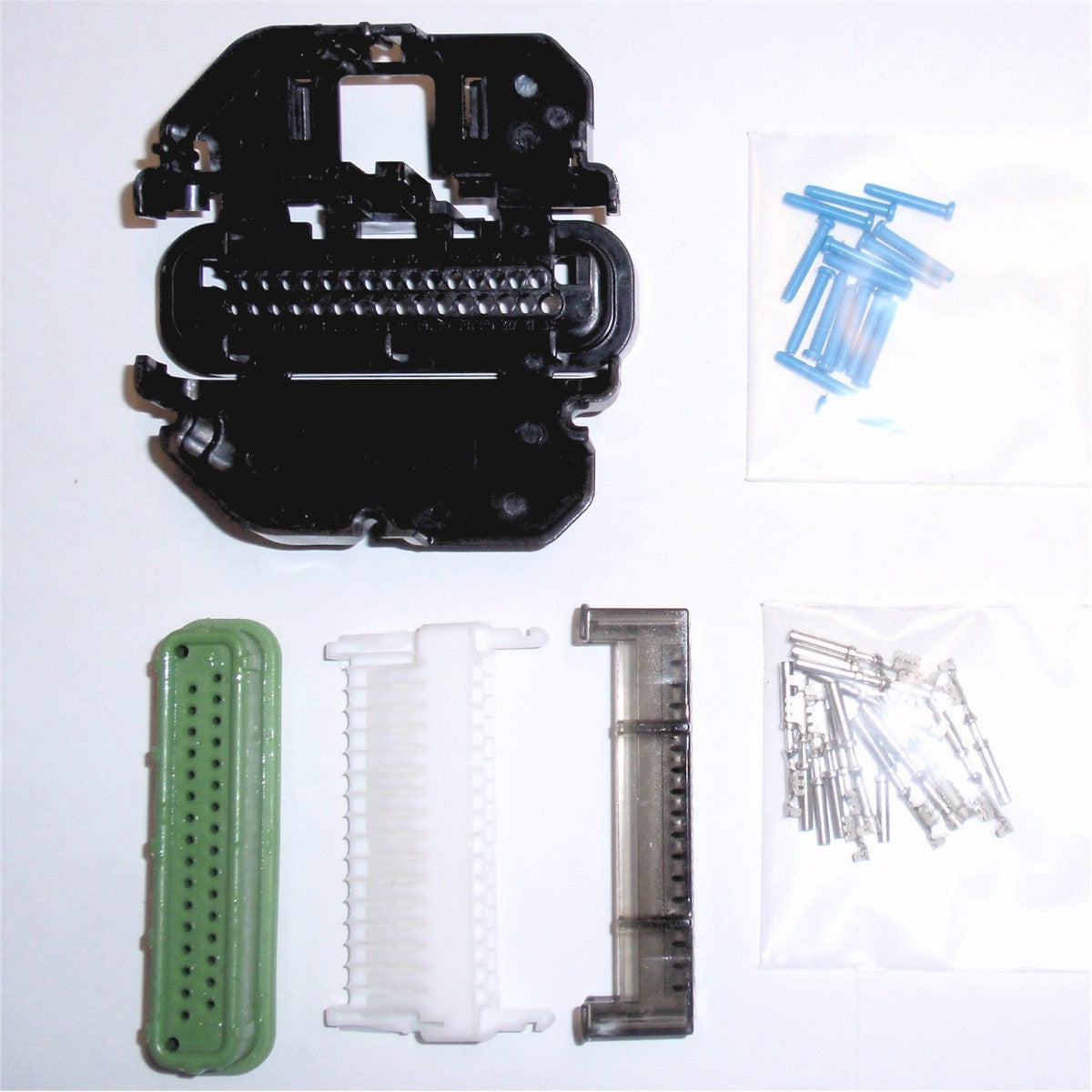

Each connector assembly contains several parts.

• A backshell that holds the assembly
• A green weathertight seal
• A white connector that aligns the sockets
• The keying nose piece
• Crimp sockets and/or Empty hole plugs for unused pins

Each of these kits contains the pieces above including 16 crimp sockets and 16 hole plugs. Additional crimp sockets and hole plugs are available.
