Molded GM OBD1 Cable Assembly


<P><font face=verdana,helvetica,sans-serif size=2>

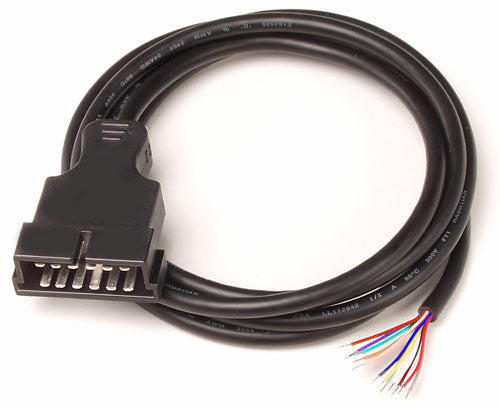

This is the molded cale assembly that we use on our ALDL cables. It has a molded GM OBD1 12-pin connector on one end, and bare wire leads on the other end. Approximately 1.5m in length



<p>
<b>Wiring Connections</b>
<table width=300 border=1>
<tr>
<td align=center bgcolor=ffffcc width=200><font face=verdana,helvetica,sans-serif size=2><b>12-pin Connector</b></td>
<td align=center bgcolor=ffffcc width=200><font face=verdana,helvetica,sans-serif size=2><b>Color</b></td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>A</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>Black</td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>B</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>Brown</td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>C</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>Red</td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>D</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>Orange</td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>E</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>Yellow</td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>F</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>Green</td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>G</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>Lt Blue</td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>H</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>Pink</td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>J</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>White</td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>K</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>Gray</td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>L</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>Purple</td>
</tr>
<tr>
<td align=center><font face=verdana,helvetica,sans-serif size=2>M</td>
<td align=center><font face=verdana,helvetica,sans-serif size=2>Blue</td>
</tr>
</table>
