OBD Diagnostics

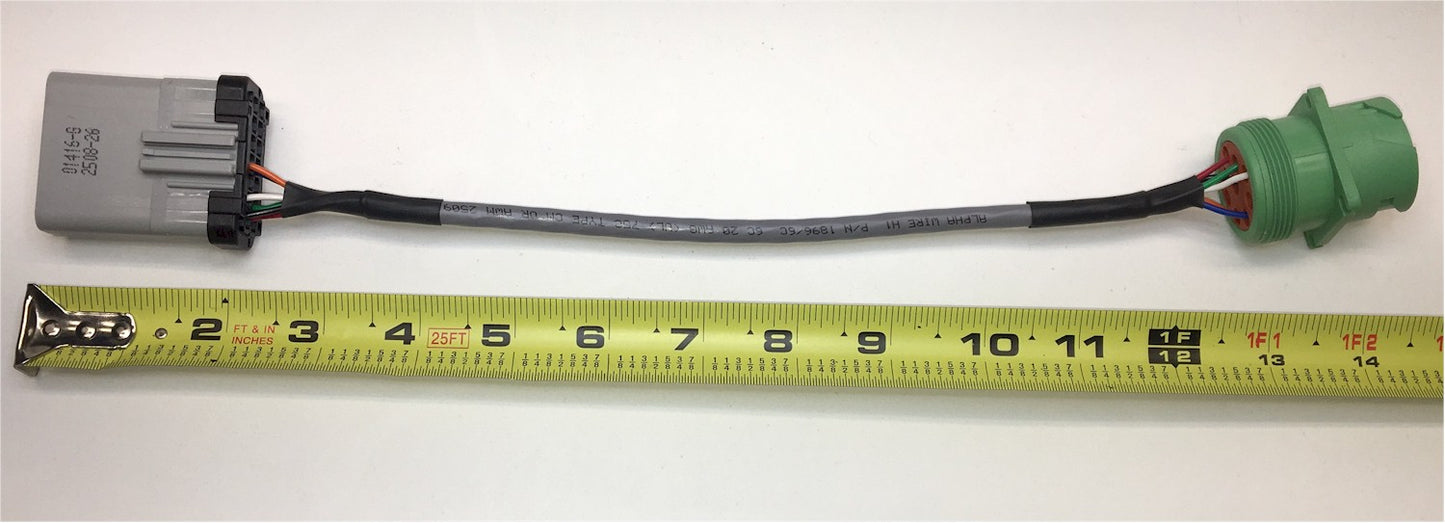

RP1226 to J1939 Type 2 (Green) Adapter
RP1226 to J1939 Type 2 (Green) Adapter
Regular price
$52.50 USD
Regular price
Sale price
$52.50 USD
Unit price
/
per
Couldn't load pickup availability
This is an adapter between the newer RP1226 ELOG connector and the standard J1939 Type 2 Connector
The most common application is to connect a GPS Tracker that is meant for an J1939 vehicle to a vehicle that has the RP1226 14-pin connector. The power lines are appropriately connected to provide power to the tracker.
Wiring Connections
RP1226 | Signal | J1939 |
8 | Ground | A |
1 | Battery | B |
2 | J1939 S-CAN, H | C |
9 | J1939 S-CAN, L | D |
4 | J1939 K-CAN, H | H |
11 | J1939 K-CAN, L | J |
